RAM Mount Balhoofdsteun Universele Houder Vingergrip RAM-B-176-UN4U

Met de balhoofd bevestiging van RAM Mount is het nu ook mogelijk om een navigatiesysteem, smartphone of portofoon centraal op de motor te bevestigen. Met behulp van een op maat te maken rubberen pin kunt u deze mount monteren in de holte van uw balhoofd (diameter range 12-20 mm en 28 mm).

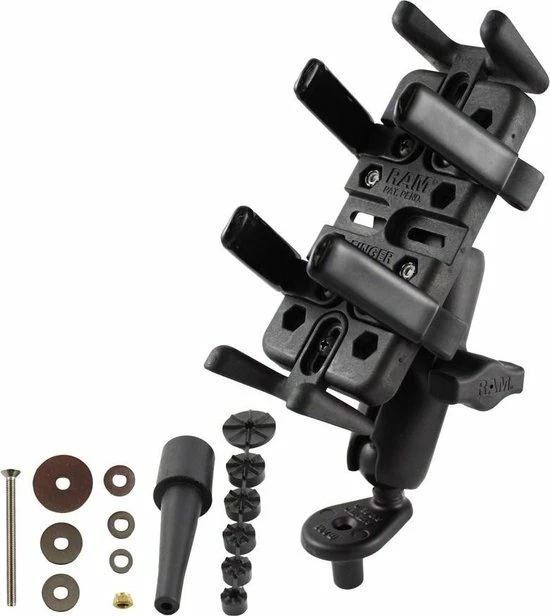

Deze set bestaat uit:
RAM-B-342U
RAM-B-201U: medium klemarm aluminium voor 1″ B-kogel
RAM-HOL-UN4U: Universele houder vingergrips RAM-HOL-UN4U

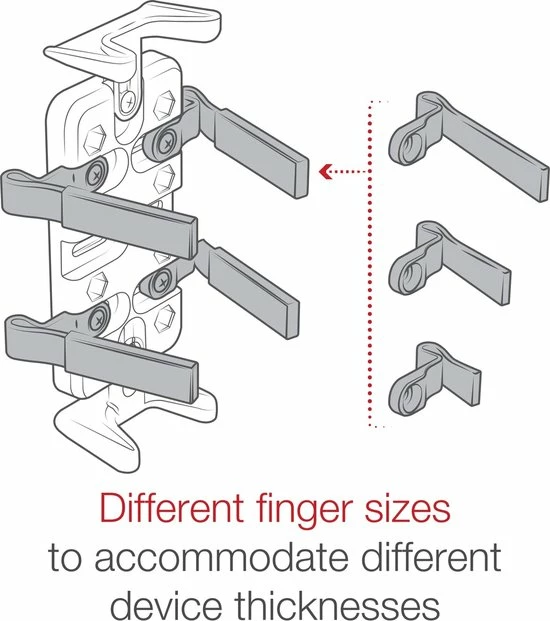

De RAM-HOL-UN4U Komt met drie maten klemmen die op verschillende posities vast te schroeven zijn. .

The RAM Composite Universal Finger Grip™ Holder is designed to hold a large amount of cell phones and electronic devices. The holder comes with (3 sets) of four flexible rubber coated fingers placed along sides to grip your device. The fingers open by squeezing the ends to open the small finger arms. The bottom of the holder includes a back plate that adds support to the device being held by the mount. The perfect solution that is the best phone mount, car mount, motorcycle mount and can be used with several other phone accessories including samsung accessories and lg accessories. The spine plate contains the universal AMPs and 1.5″ x 2″ hole patterns.

This mount is designed to hold the following devices:
Cell Phones (check measurements below for dimensions)

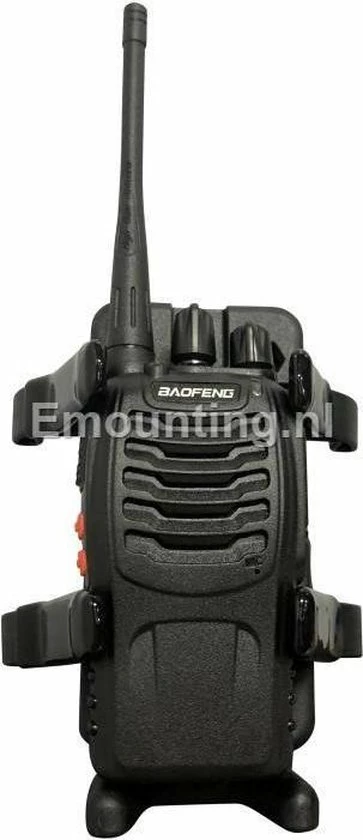

2-Way Radios, Portofoon, walkietalkie
GPS Devices
Works with OtterBox (Defender, Commuter, Impact) Cases, Phones with Bumper, Twisted Metal Case and More
Perfect rugged solution for the Blackberry, HTC Evo, Droid X, iPhone, and More
Use on your Motorcycle, ATV, UTV, Car, Boat and More

Height Dimensions:
Minimum with Top and Bottom Plates: 5.25″ (131 mm)
Maximum with Top and Bottom Plates: 7.25″ (180 mm)
The top and bottom plates can be removed for larger devices.

Spine Plate Dimensions:
3″ Width x 3″ Height (75 x 75 mm)

Using Short Arm Side Clamps (kort) :
Maximum Depth: 0.75″ (dikte 19 mm)
Minimum Width: 1.25″ (31 mm)
Maximum Width: 3.0″ (75 mm)

Using Medium Arm Side Clamps (medium):
Maximum Depth: 1.25″ (dikte 31 mm)
Minimum Width: 1.5″ (37 mm)
Maximum Width: 3.5″ (88 mm)

Using Long Arm Side Clamps (large):
Maximum Depth: 1.6″ (dikte 40 mm)
Minimum Width: 2.25″ (56 mm)
Maximum Width: 3.5″ (88 mm)

Material:
High Strength Composite
